libgd-gis

A pure Ruby GIS rendering engine built on ruby-libgd. Render real maps, GeoJSON, labels and styles directly to PNG — no JS, no QGIS, no Mapbox.

Rendered Maps

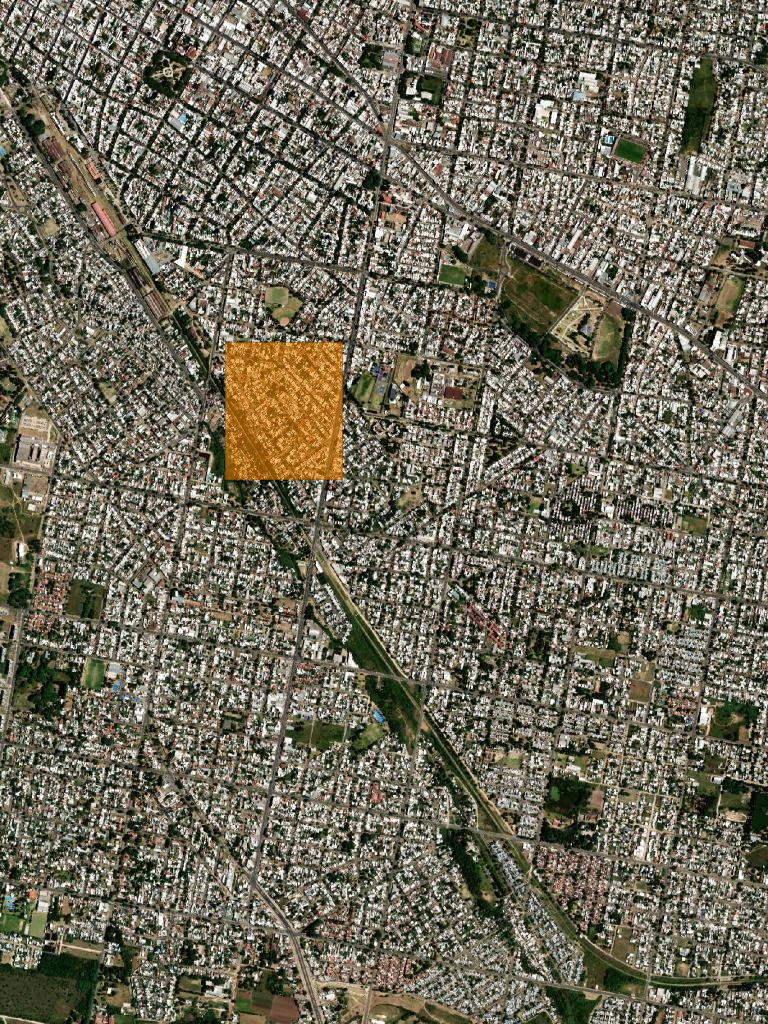

Paraná Polygon

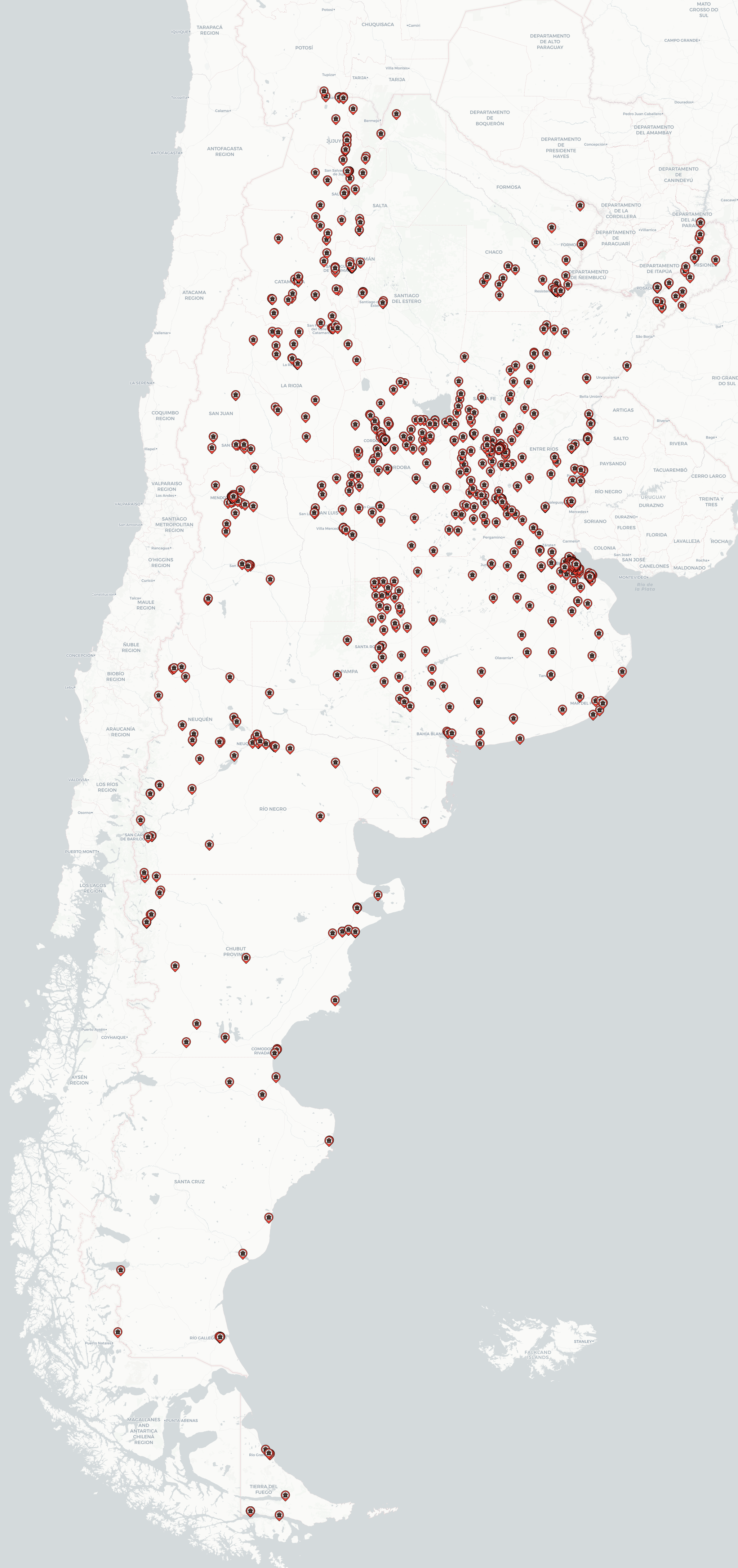

Argentina Museums

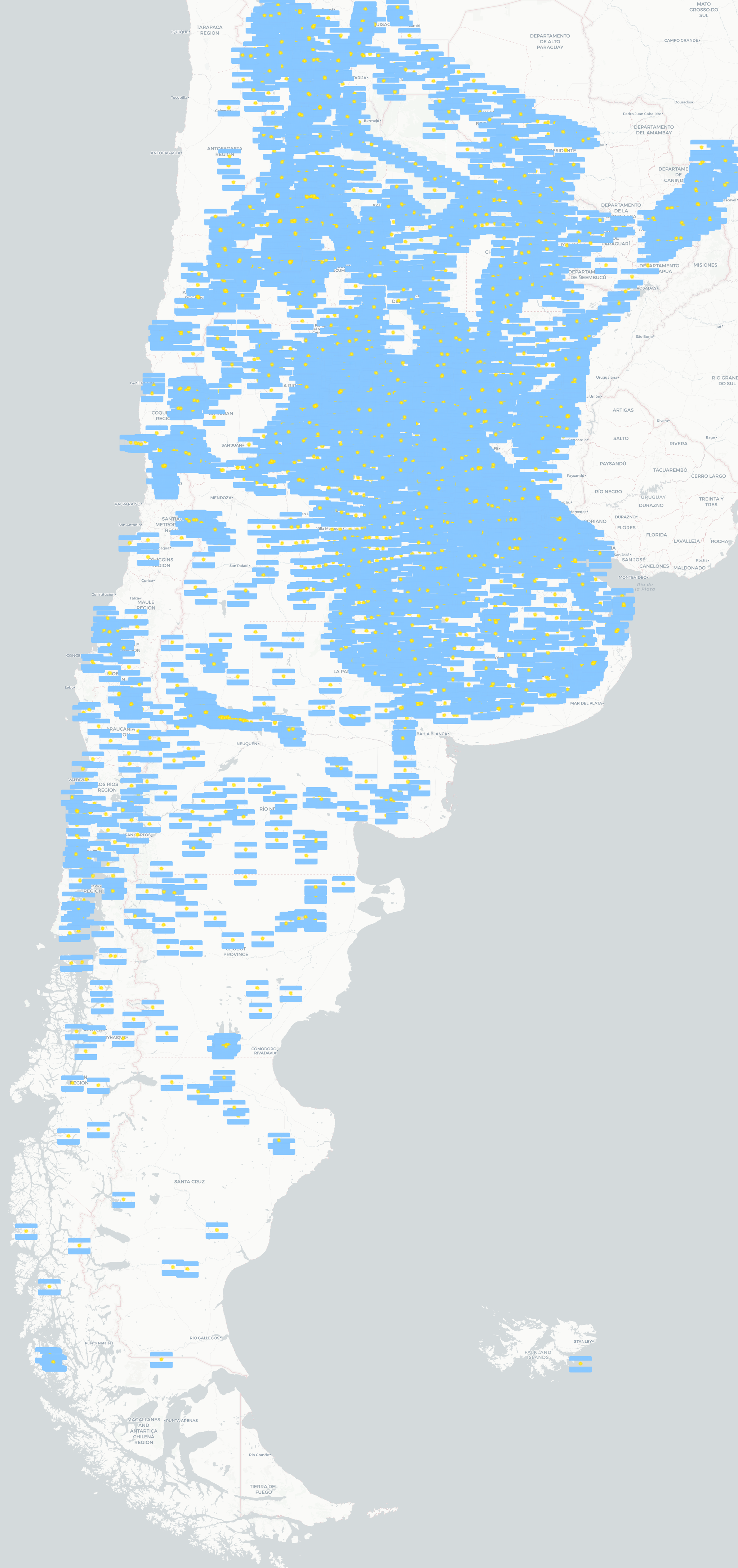

Argentina Cities

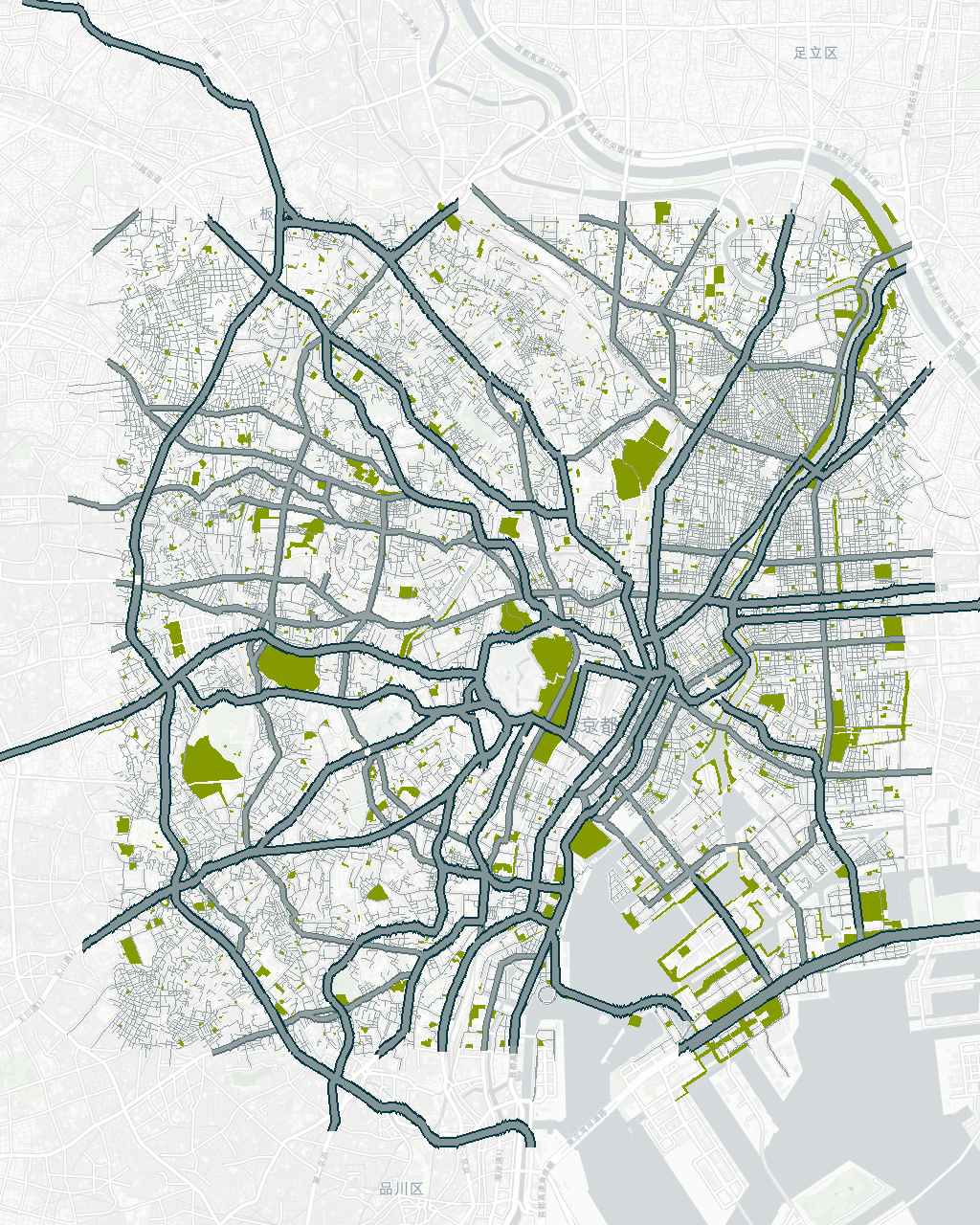

Tokyo Solarized

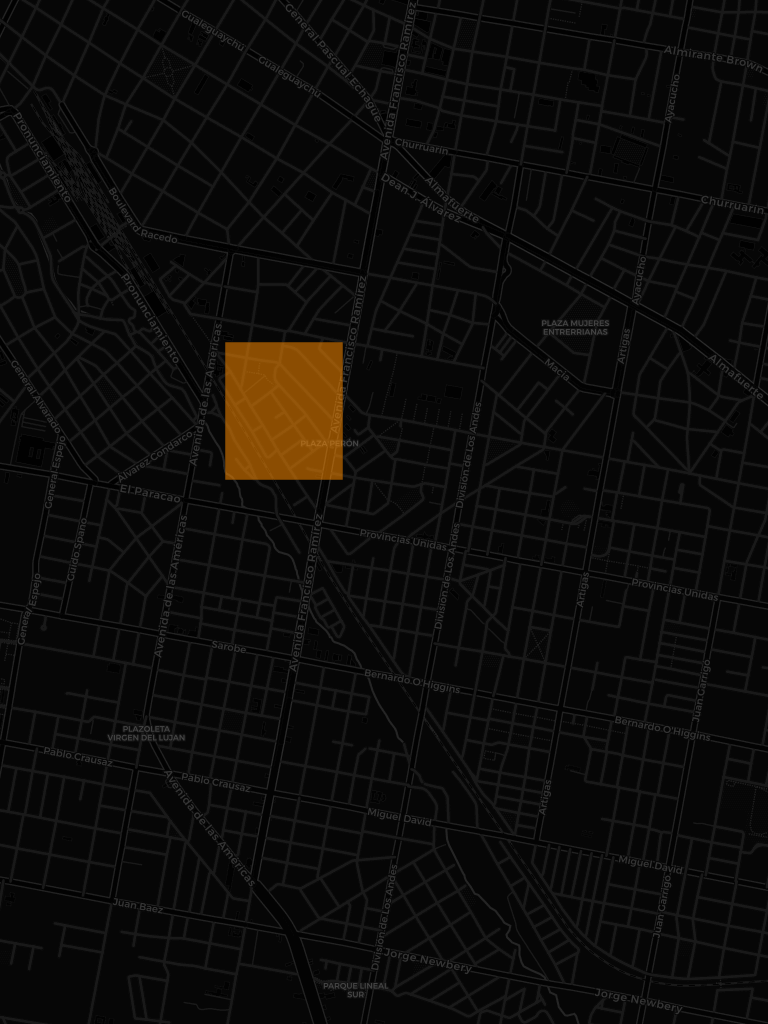

Paraná Carto Dark
World Peaks (Small)

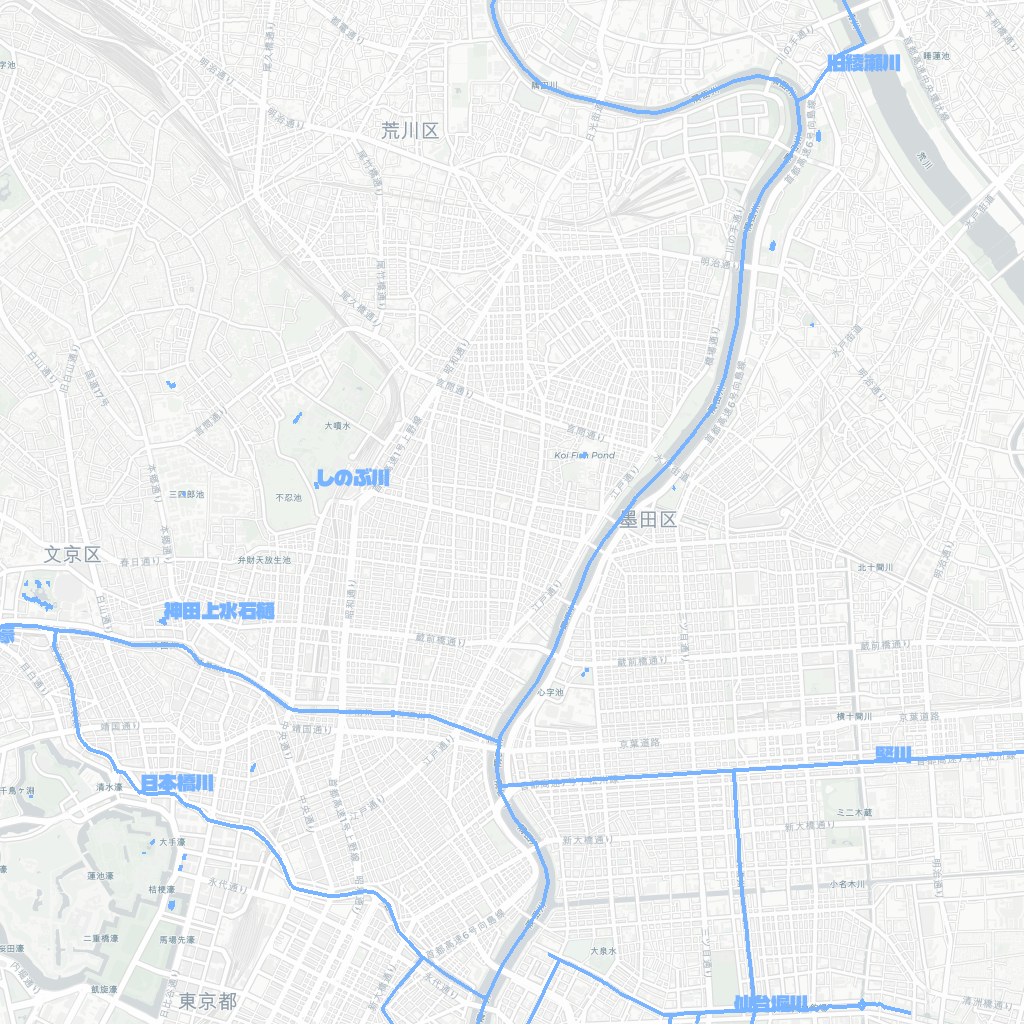

Tokyo Water
Paraná Tokyo

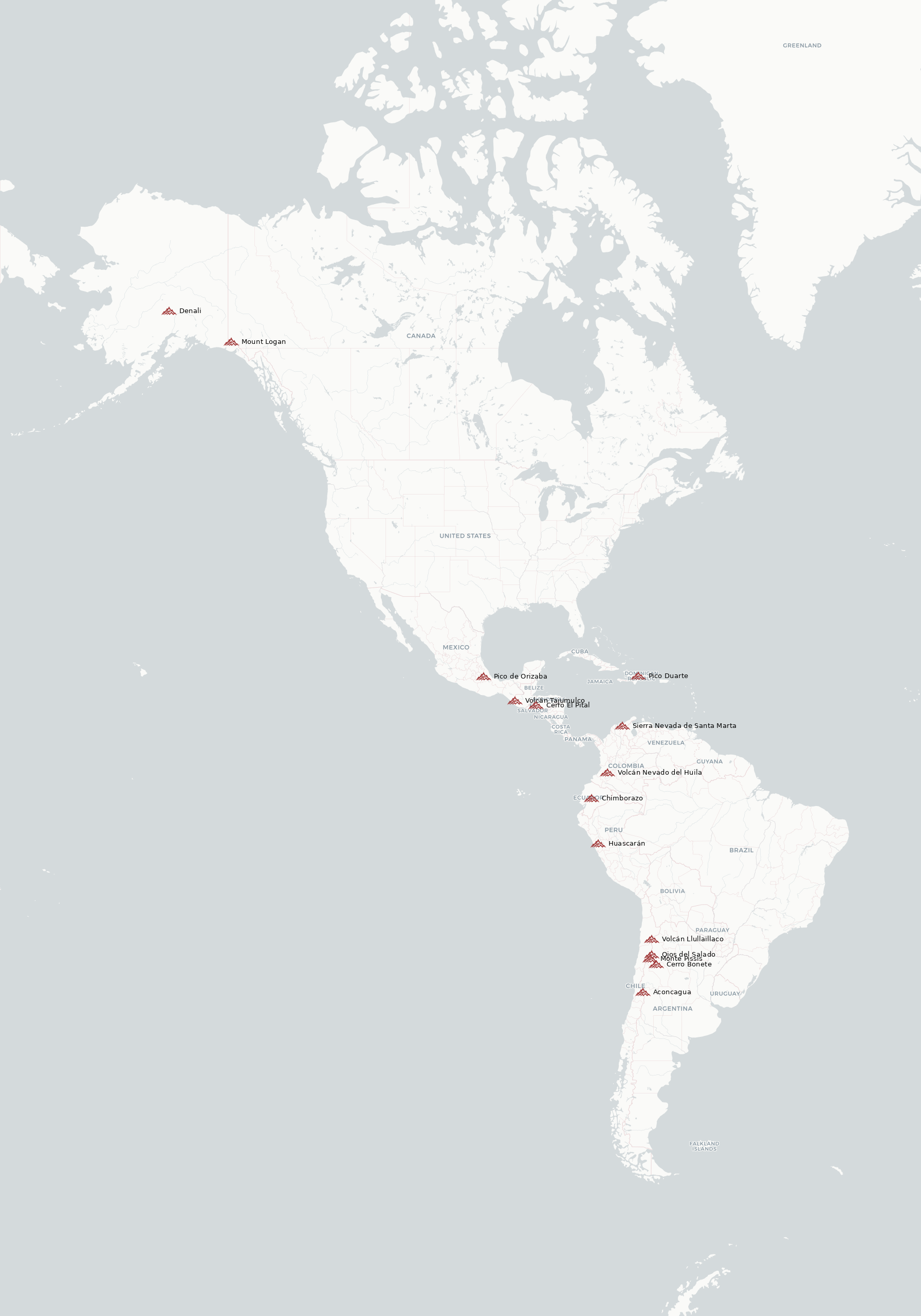

Americas

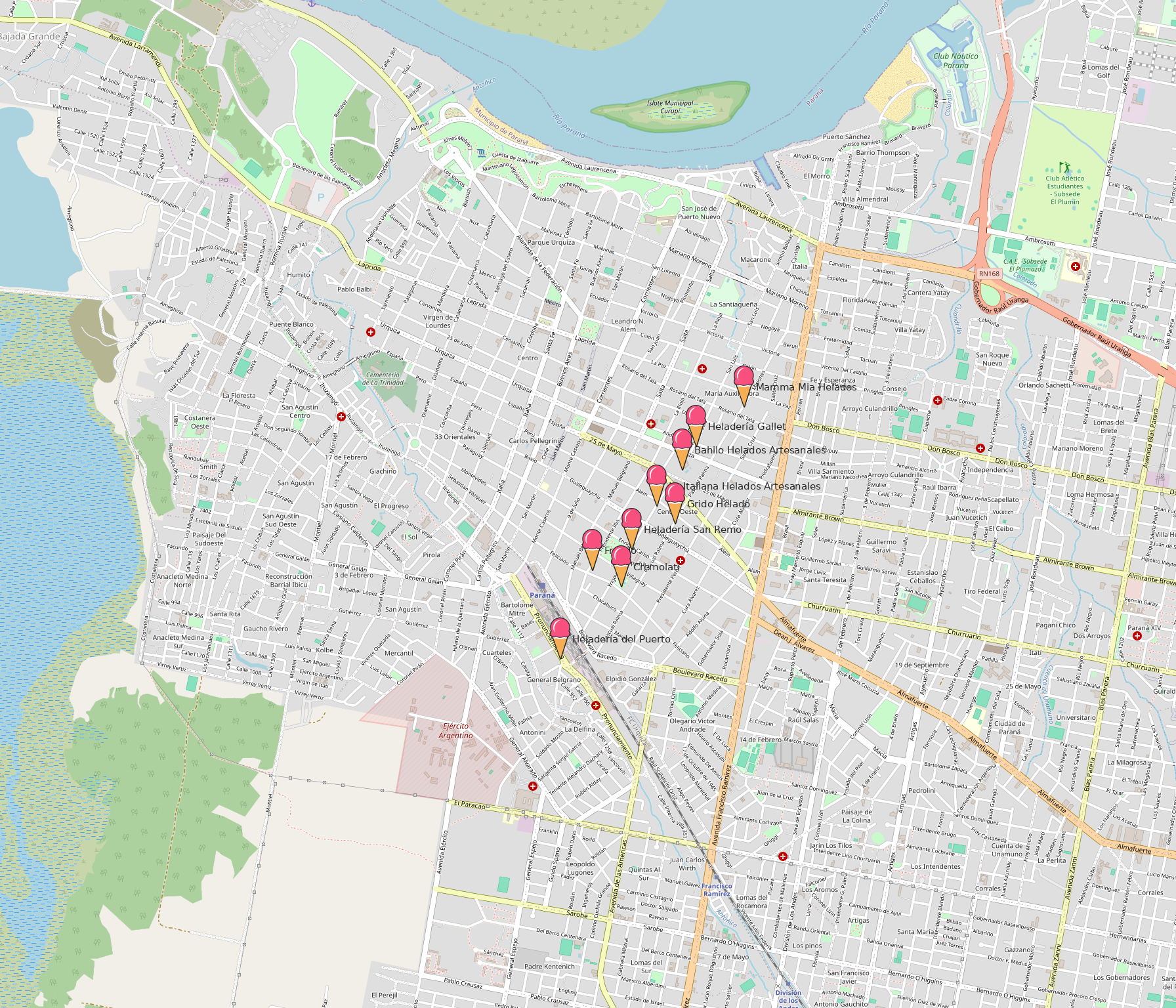

Ice Cream Paraná

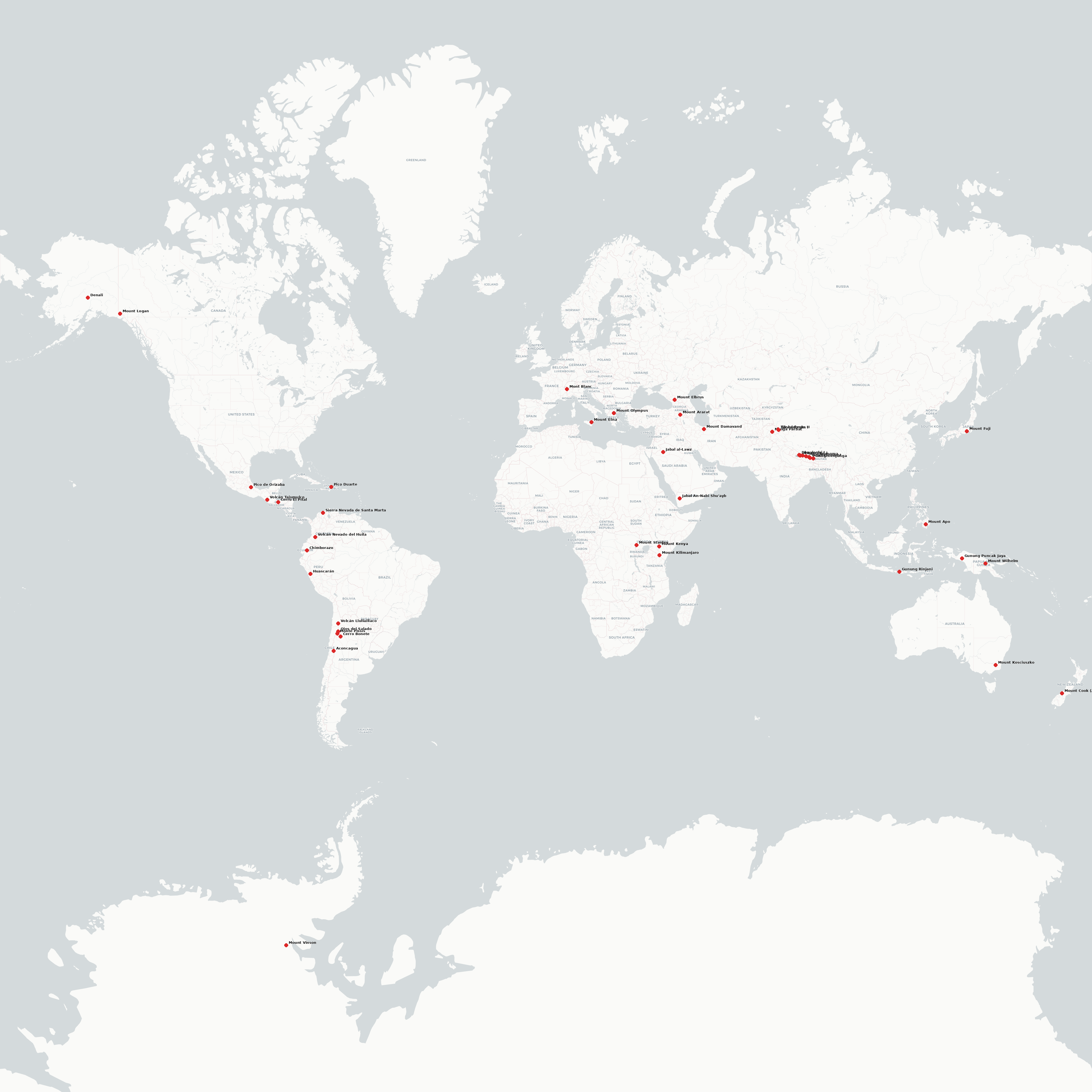

World Peaks
Europe

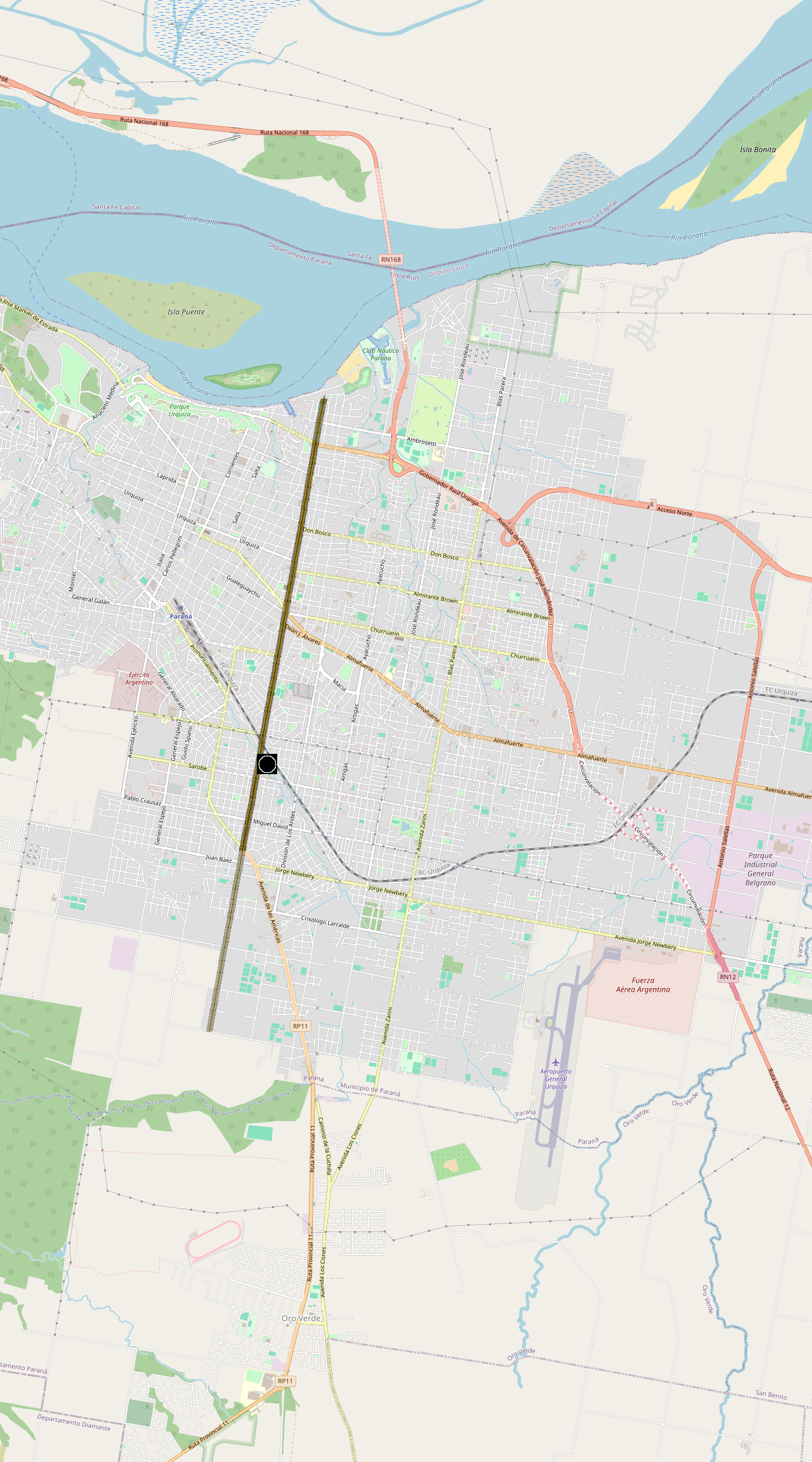

Avenida Ramírez

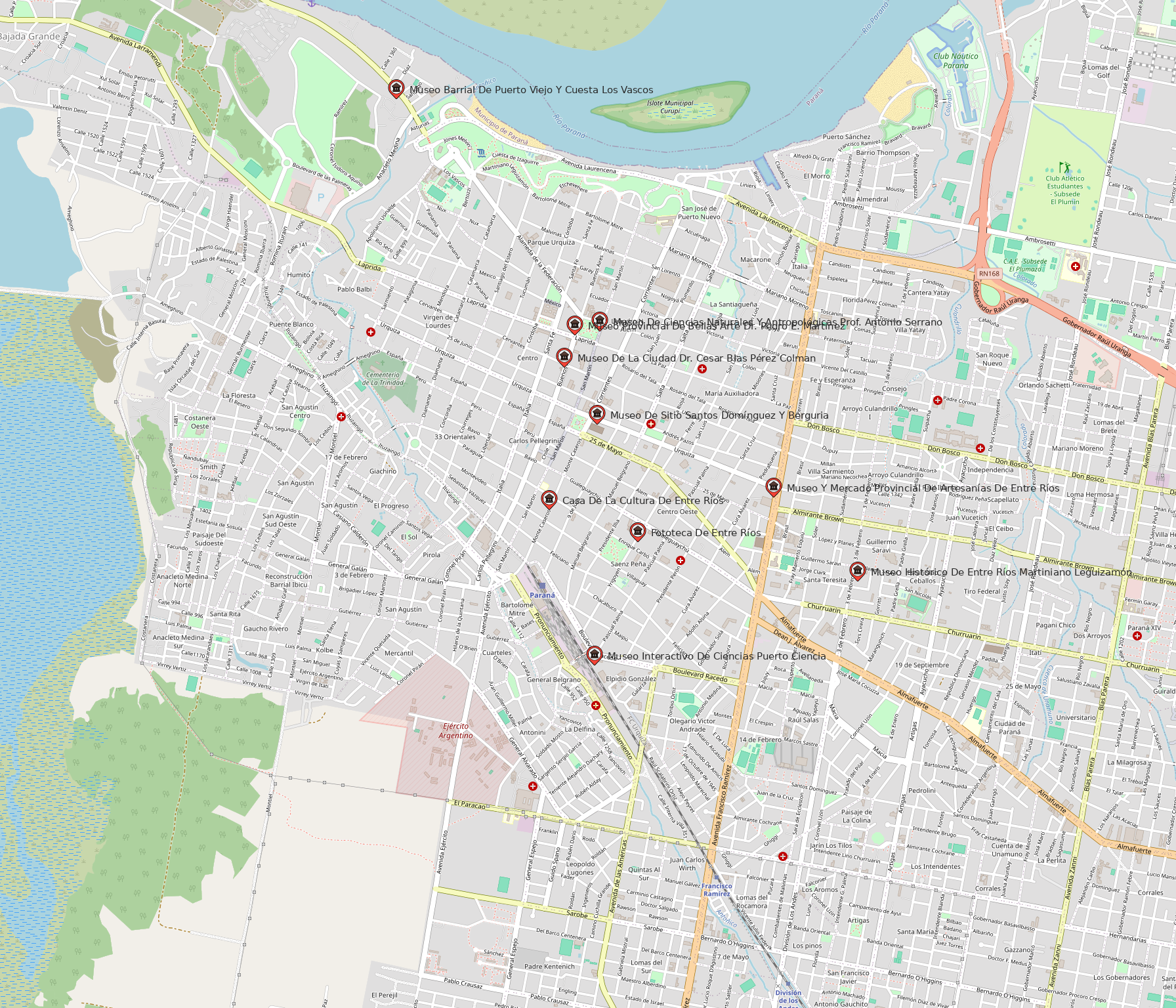

Museos Paraná

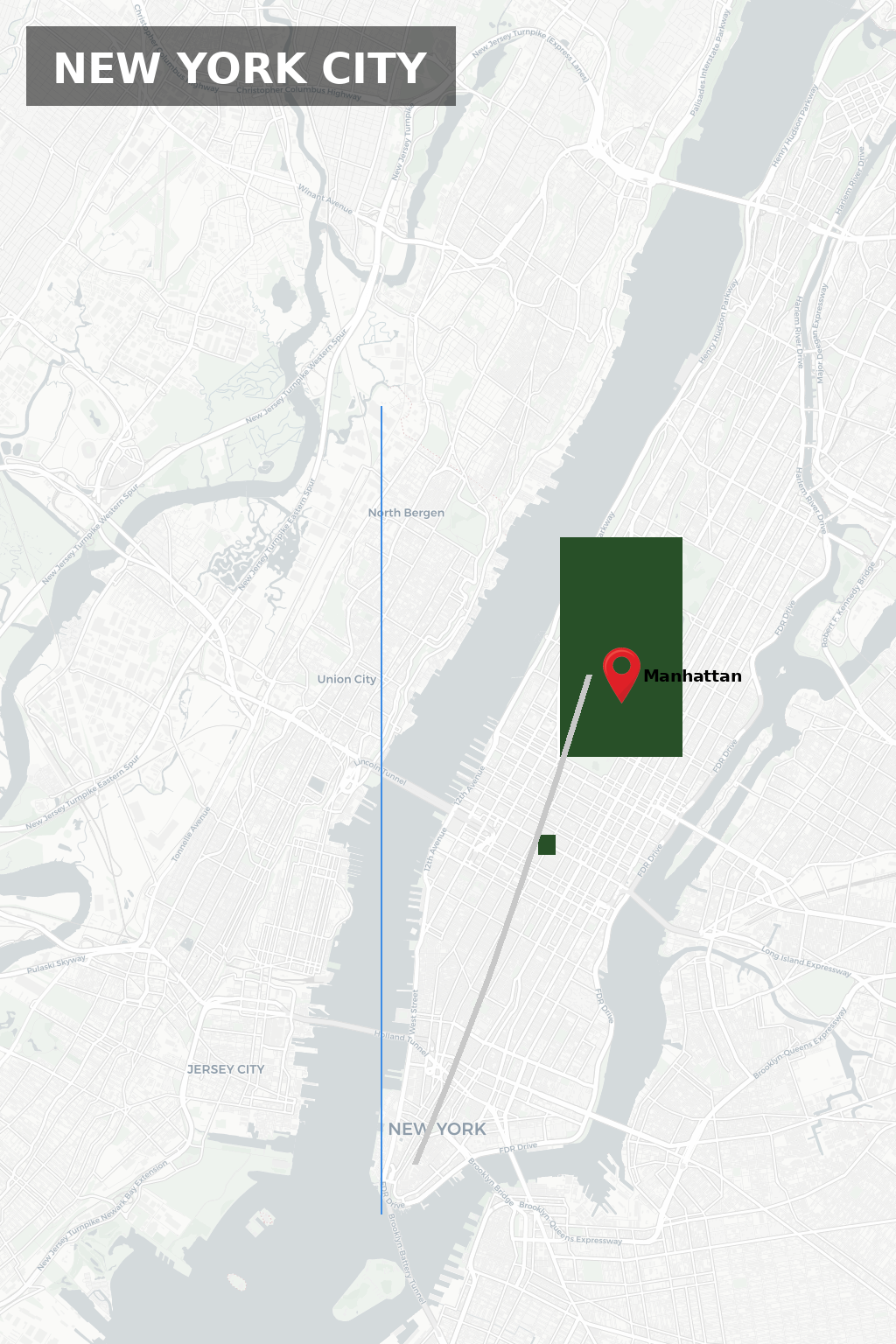

New York City
Argentina

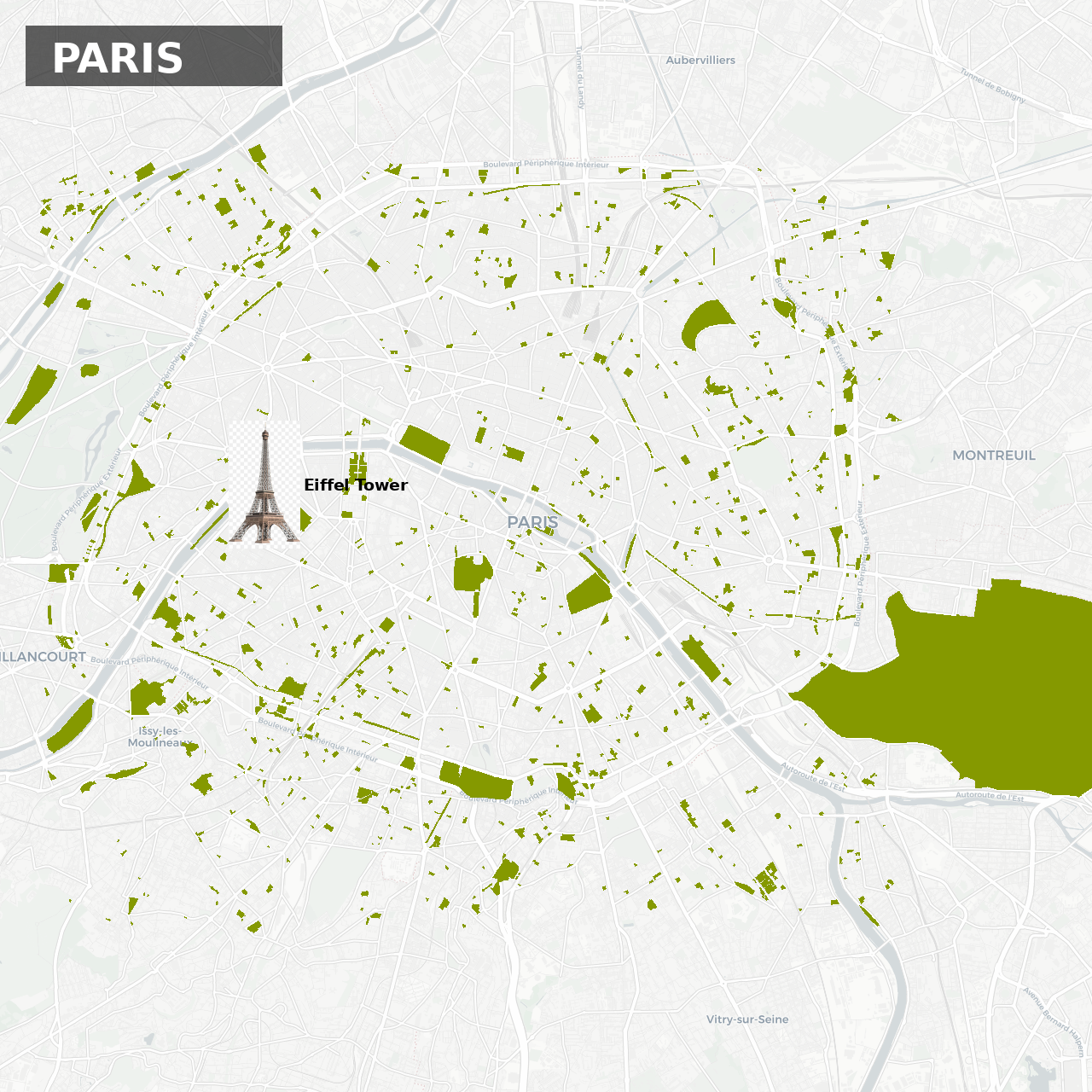

Paris

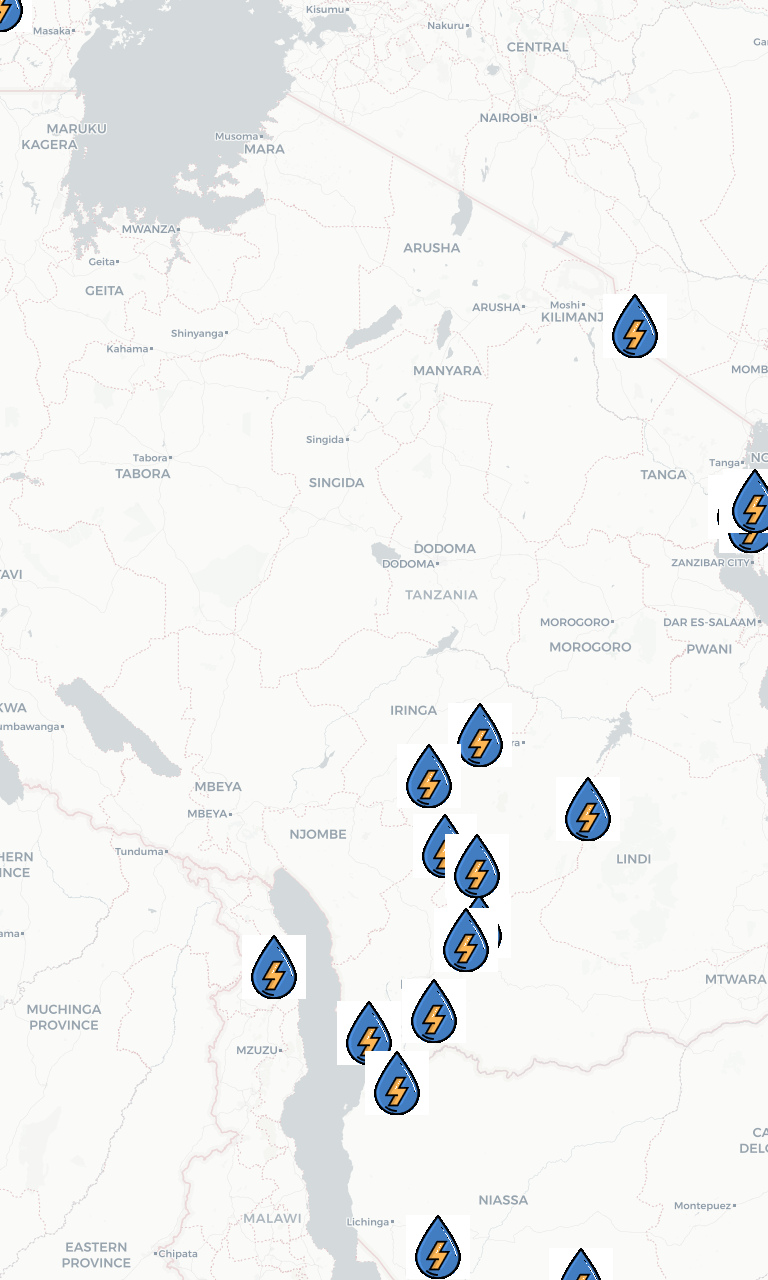

Tanzania Hydro

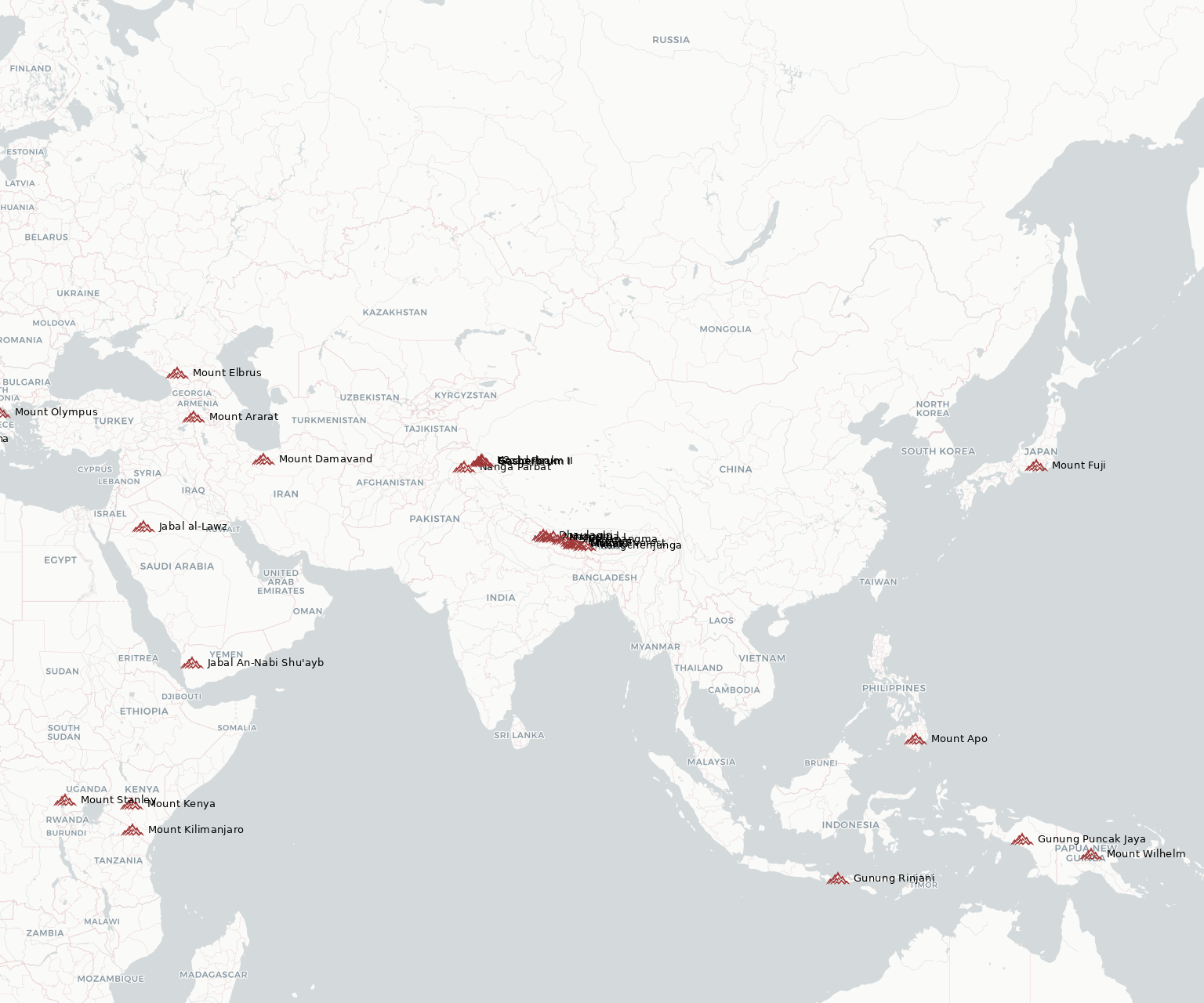

Asia Peaks

Full Examples (Ruby)

tokyo.rb


require "pry"
require "gd/gis"

TOKYO = [139.68, 35.63, 139.82, 35.75]

map = GD::GIS::Map.new(
  bbox: TOKYO,
  zoom: 13,
  basemap: :carto_light
)

# map.style = GD::GIS::Style::DARK
# map.style = GD::GIS::Style::SOLARIZED
map.style = GD::GIS::Style.load("solarized")

# Roads
map.add_geojson("streets.geojson")
map.add_geojson("streets.geojson")
map.add_geojson("streets.geojson")

map.add_geojson("parks.geojson")

# Railways
# map.add_geojson("railways.geojson")
# map.add_geojson("railways.geojson")
# map.add_geojson("railways.geojson")

map.render

font = "../fonts/DejaVuSans-Bold.ttf"

bg = GD::Color.rgba(0, 0, 0, 80)
fg = GD::Color.rgb(255, 255, 255)

map.image.filled_rectangle(24, 24, 264, 88, bg)

map.image.text(
  "TOKYO",
  x: 48,
  y: 68,
  size: 32,
  color: fg,
  font: font
)

map.save("tokyo.png")

parana.rb


require "gd/gis"

BBOX = [-60.53, -31.77, -60.51, -31.74]

map = GD::GIS::Map.new(
  bbox: BBOX,
  zoom: 15,
  basemap: :carto_dark
)

polygon = [
  [-60.525, -31.750],
  [-60.520, -31.750],
  [-60.520, -31.755],
  [-60.525, -31.755],
  [-60.525, -31.750]
]

map.add_polygons(
  [polygon],
  fill:   [255, 140, 0, 120],
  stroke: [0, 0, 0, 200],
  width:  2
)

map.render
map.save("carto_dark.png")

puts "Generated carto_dark.png"

paris.rb


require "gd/gis"

PARIS = [2.25, 48.80, 2.42, 48.90]

map = GD::GIS::Map.new(
  bbox: PARIS,
  zoom: 13,
  basemap: :carto_light
)

map.style = GD::GIS::Style.load("solarized")


# Seine river
map.add_geojson("data/seine.geojson")

# Parks
map.add_geojson("data/parks.geojson")


pois = [
  { "name" => "Eiffel Tower", "lon" => 2.2945, "lat" => 48.8584 }
]

map.add_points(
  pois,
  lon:   ->(r){ r["lon"].to_f },
  lat:   ->(r){ r["lat"].to_f },
  icon:  "eiffel.jpg",
  label: ->(r){ r["name"] },
  font:  "./fonts/DejaVuSans-Bold.ttf",
  size:  14,
  color: [0,0,0]
)

map.render
map.image.antialias = true

# Title
font = "./fonts/DejaVuSans-Bold.ttf"
bg = GD::Color.rgba(0,0,0,100)
fg = GD::Color.rgb(255,255,255)

map.image.filled_rectangle(30, 30, 330, 100, bg)
map.image.text("PARIS", x: 60, y: 85, size: 36, color: fg, font: font)

map.save("paris.png")

nyc.rb


require "pry"
require "gd/gis"

MANHATTAN = [-74.05, 40.70, -73.93, 40.88]

map = GD::GIS::Map.new(
  bbox: MANHATTAN,
  zoom: 13,
  basemap: :carto_light
)

map.style = GD::GIS::Style.load("dark")

# capas
map.add_geojson("nyc_test.geojson")

# POIs
pois = [
  { "name" => "Manhattan",     "lon" => -73.97, "lat" => 40.78 },
  { "name" => "Brooklyn",      "lon" => -73.95, "lat" => 40.65 },
  { "name" => "Queens",        "lon" => -73.85, "lat" => 40.73 },
  { "name" => "Bronx",         "lon" => -73.86, "lat" => 40.85 },
  { "name" => "Staten Island", "lon" => -74.15, "lat" => 40.58 }
]

font = "./fonts/DejaVuSans-Bold.ttf"
map.add_points(
  pois,
  lon:   ->(r){ r["lon"] },
  lat:   ->(r){ r["lat"] },
  icon:  "icon.png",
  label: ->(r){ r["name"] },
  font:  font,
  size:  14,
  color: [0,0,0]
)

# UNA sola vez
map.render

map.image.antialias = true

bg = GD::Color.rgba(0,0,0,120)
fg = GD::Color.rgb(255,255,255)

map.image.filled_rectangle(30, 30, 520, 120, bg)
map.image.text("NEW YORK CITY", x: 60, y: 95, size: 36, color: fg, font: font)

map.save("nyc.png")

world_peaks.rb


require "json"
require "gd/gis"

EUROPE = [-15.0, 34.0, 40.0, 72.0]

map = GD::GIS::Map.new(
  bbox: EUROPE,
  zoom: 4,
  basemap: :carto_light
)


peaks = JSON.parse(File.read("picks.json"))

map.add_points(
  peaks,
  lon: ->(p) { p["longitude"] },
  lat: ->(p) { p["latitude"] },
  icon: "peak.png",
  label: ->(p) { p["name"] },
  font: "./fonts/DejaVuSans.ttf",
  size: 10,
  color: [0,0,0]
)

map.render
map.save("output/europe.png")

puts "Saved output/europe.png"

Animated Maps (Alpha)

libgd-gis is designed not only for static map rendering, but also for map manipulation and animated outputs such as route playback, simulated or real-time geolocation tracking.

Animated map generation is already possible, including GIF-based animations showing movement across cities. This feature is currently in alpha (alpha-1) and will be released as stable after extensive testing and API stabilization.

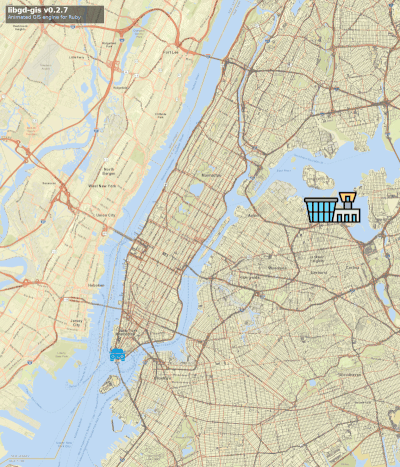

NYC — Multi-track Animation

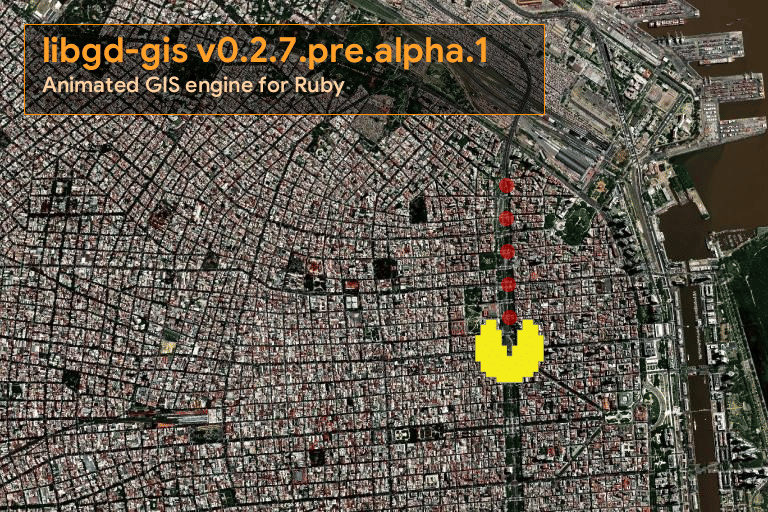

Buenos Aires — Pac-Man Track

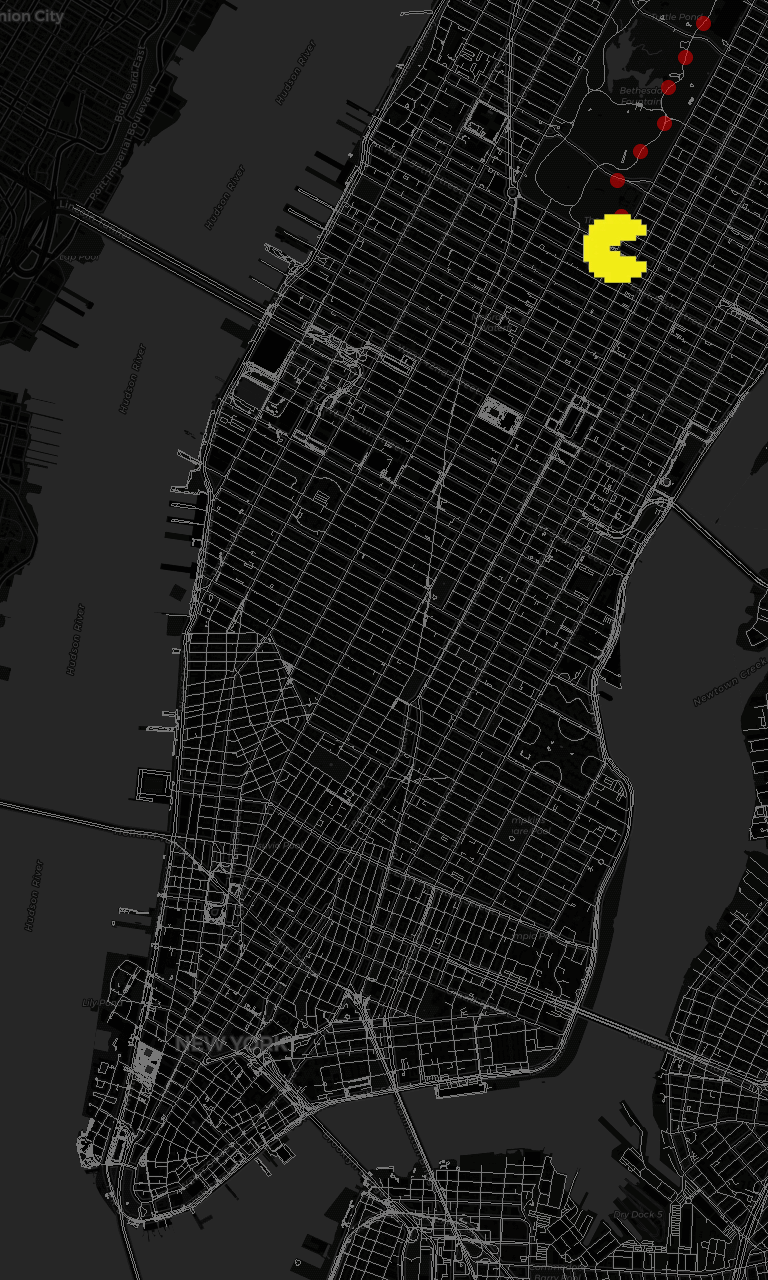

Manhattan — Pac-Man Path
Manhattan — Vehicle Tracking
